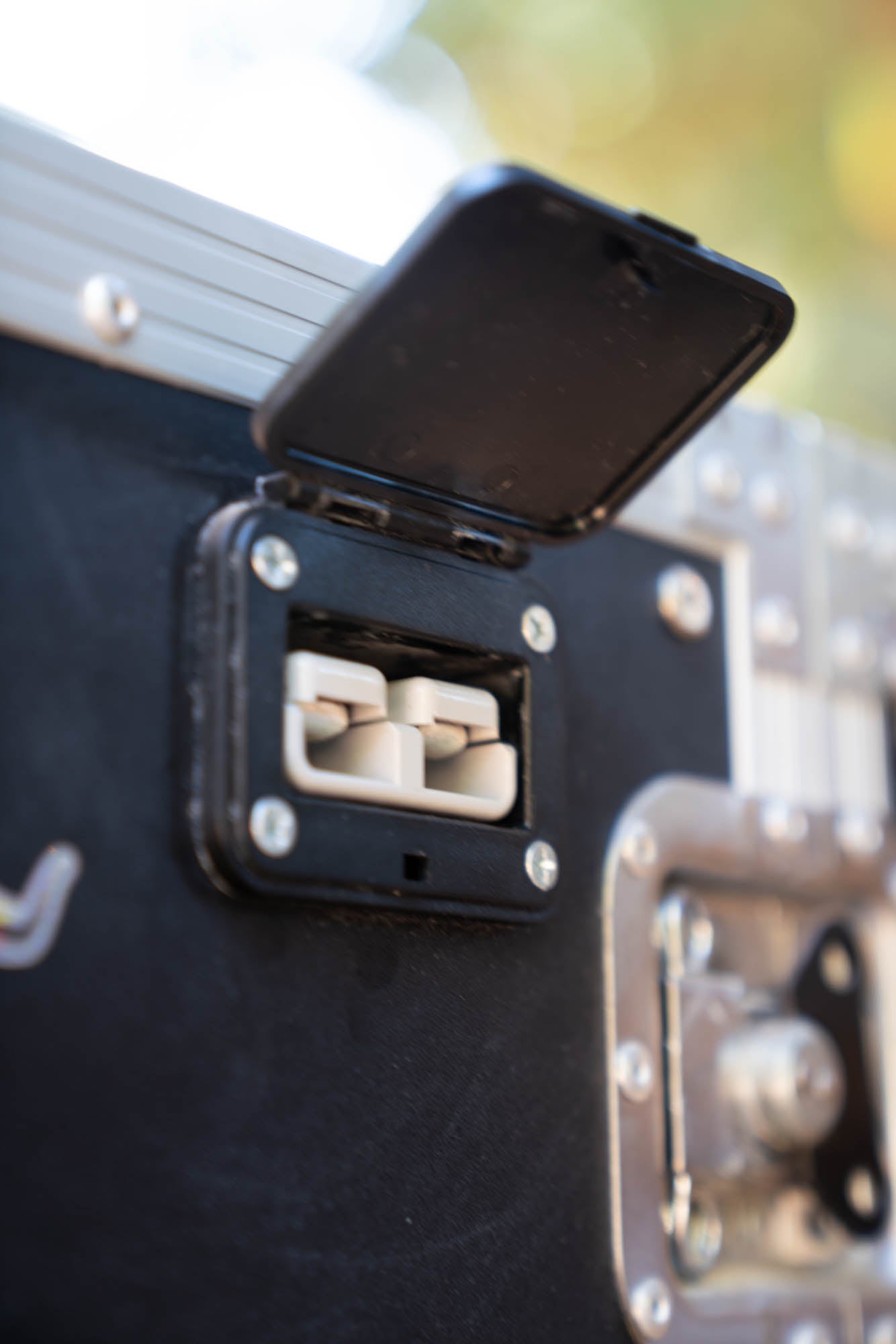

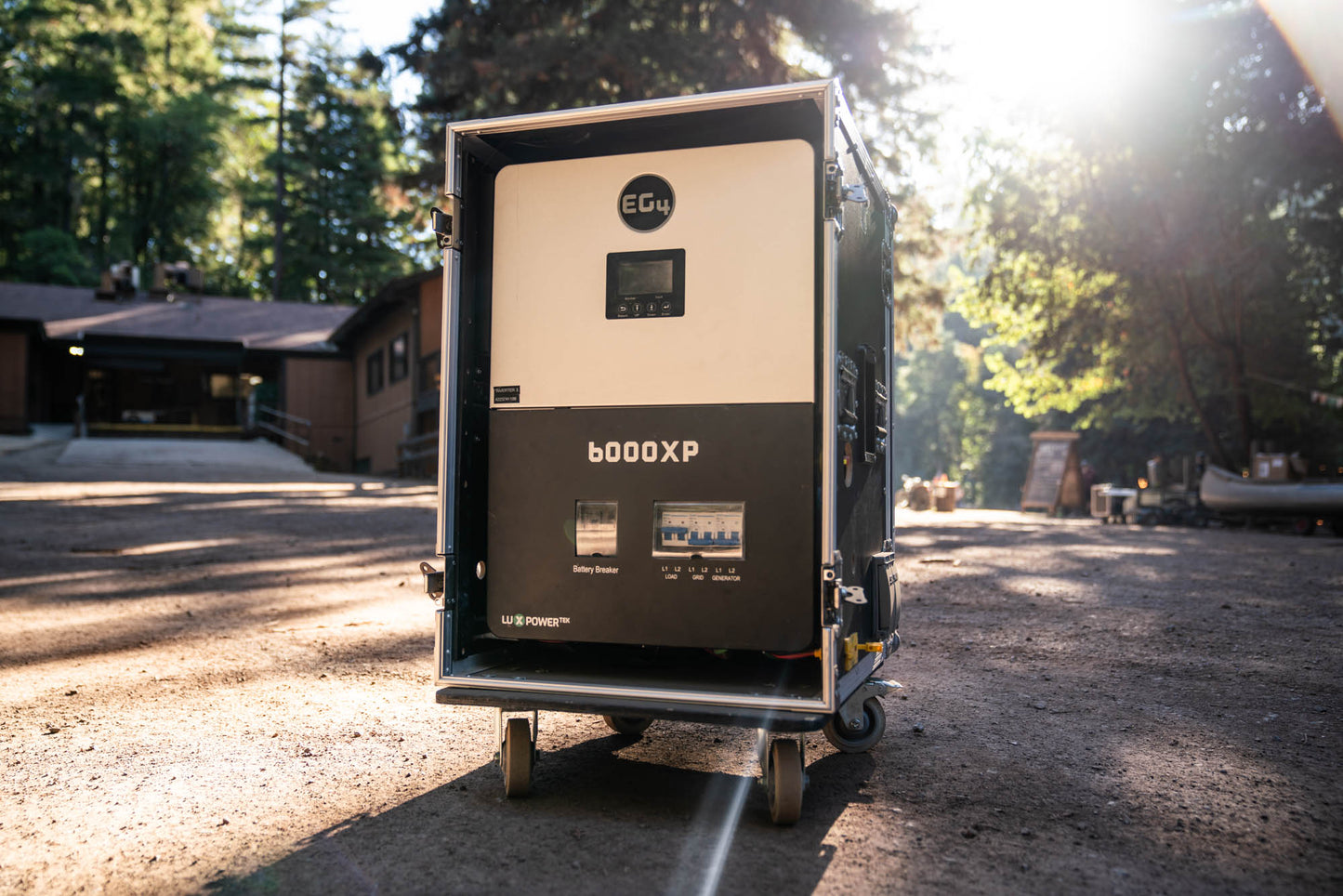

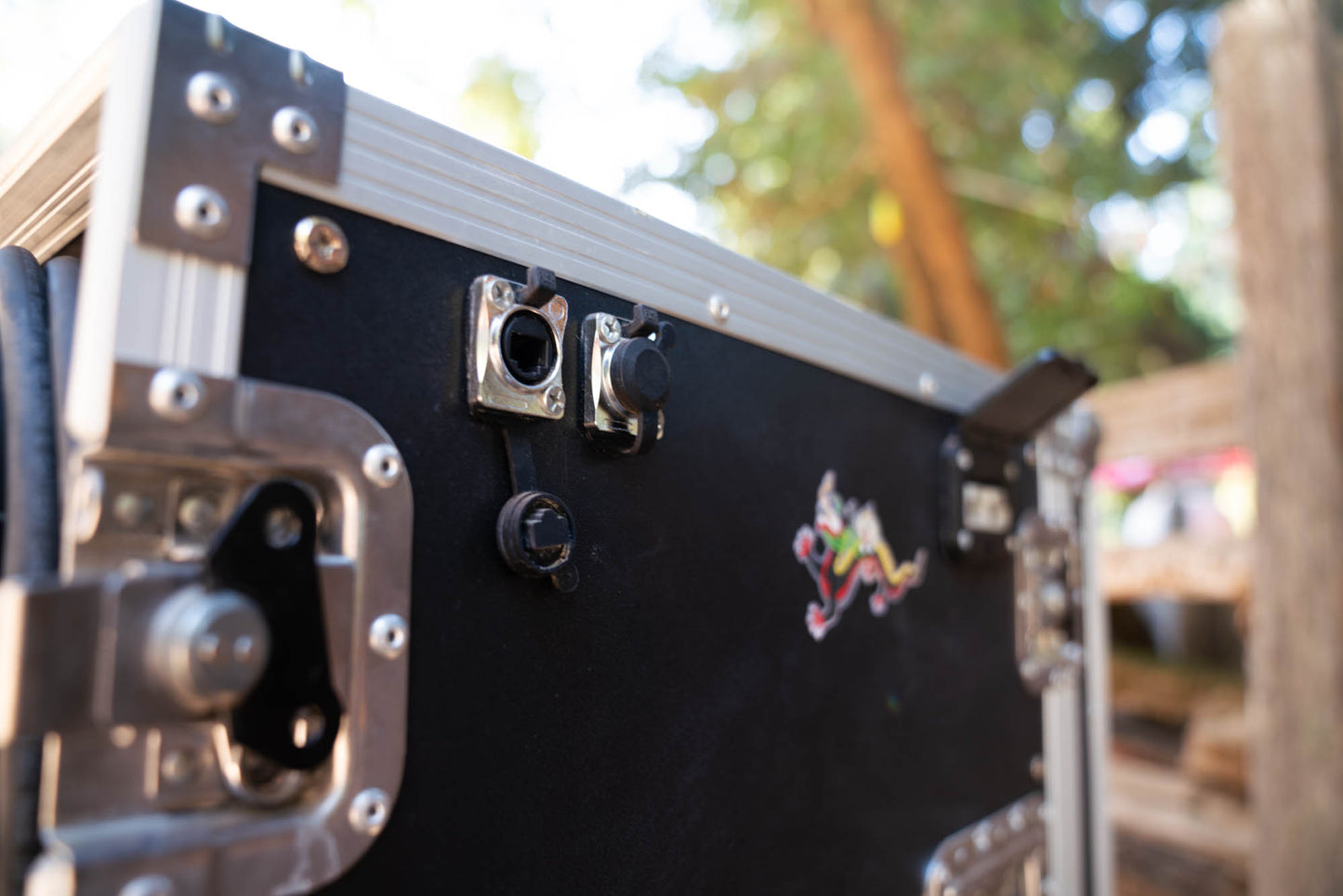

Road-Case Mounted EG4 6000XP Inverter

EG4® 6000XP All-In-One Off-Grid Inverter | SKU: EG4HYB6K00V2

UL 1741 Certified for Superior Performance and Reliability

The EG4 6000XP All-In-One Off-Grid Inverter is a cutting-edge, 48V split-phase inverter/charger engineered for powerful and efficient off-grid energy solutions. Designed to handle up to 8kW of solar photovoltaic (PV) input and output up to 6kW of pure, reliable power, this inverter is perfect for those seeking a dependable energy source in off-grid or backup power scenarios.

Key Features:

1. High-Performance Solar Input & Output

• 8kW Solar Input with Dual MPPTs: The EG4 6000XP efficiently utilizes two Maximum Power Point Trackers (MPPTs), allowing up to 8kW of solar input with a high 480VDC input. This reduces cable size and eliminates the need for a combiner box, streamlining installation and minimizing costs.
• 6kW Output Power: Capable of delivering up to 6kW of continuous power while simultaneously charging your battery bank, ensuring you always have access to electricity even in demanding conditions.

2. Scalable & Flexible Design

• Parallel Up to 16 Units: Scale your power solution effortlessly by paralleling up to 16 EG4 6000XP inverters, achieving a remarkable combined output of up to 96kW. This makes it ideal for applications ranging from residential to large commercial setups, allowing you to customize your energy needs as required.
• Split-Phase 120/240V Output: The inverter's high-frequency, transformerless design provides a split-phase 120/240V output, offering exceptional efficiency and flexibility for various applications, whether you’re powering an off-grid home or running essential equipment at a remote job site.

3. Integrated Monitoring & Communication

• Built-In Wi-Fi & Real-Time Monitoring: Stay in control with the included mountable Wi-Fi device, which connects to EG4’s monitoring software. You can access real-time system data, control settings, and monitor performance remotely via an app or online portal, giving you peace of mind no matter where you are.
• Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries, such as the EG4 LifePower4, and other brands (firmware update may be required). This closed-loop communication ensures efficient charging and battery management, maximizing your system's performance.

4. Built-In Switchgear for Simplified Installation

• Cost-Effective & Easy Setup: The EG4 6000XP features integrated switchgear, saving you time and money during installation. This innovative design ensures your inverter is secure, reliable, and easy to implement, making off-grid power more accessible and affordable.

5. Transformer-Free Efficiency & Low Idle Power Consumption

• Energy-Efficient Design: The transformer-free architecture not only makes the inverter lightweight and easy to handle but also reduces idle power consumption to as low as 30W (when PV is connected). This means less energy wasted, resulting in greater overall system efficiency.
• Uncompromised Surge Capacity: Despite its transformer-free design, the EG4 6000XP maintains impressive surge capacity and line imbalance capability, ensuring reliable power delivery even during high-demand moments.

6. Simplified Generator Connection

• Dedicated GEN Port: The EG4 6000XP offers a dedicated generator port, allowing for effortless integration with generators up to 7kW. This eliminates the need for expensive transfer switches and complicated relays, making it easier than ever to incorporate generator backup into your off-grid setup.

Technical Specifications:

• DC Input Voltage Range: 100-480 VDC
• Number of MPPTs: 2
• MPPT Efficiency: 99%
• Output Voltage: Split-phase 120/240V
• Dimensions: 18 × 25.5 × 5.25 in (45.7 × 64.8 × 13.2 cm)
• Weight: 52.9 lbs. (24 kg)
• Parallel Capability: Up to 16 units for a maximum of 96kW of continuous AC power

Why Choose the EG4 6000XP All-In-One Off-Grid Inverter?

• UL 1741 Certified: Ensures the highest standards of safety, reliability, and performance, making it a trusted choice for both residential and commercial applications.
• Scalable & Flexible: Capable of paralleling up to 16 units, this inverter is perfect for growing energy needs, from off-grid cabins to large industrial setups.
• Seamless Monitoring & Control: Real-time wireless monitoring with EG4’s app or online portal keeps you informed and in control of your energy system.
• Easy Installation & Integration: The built-in switchgear and simplified generator connection mean quicker setup and hassle-free operation.

Ideal For:

• Off-Grid Homes: Power your off-grid lifestyle with confidence, knowing you have a reliable and scalable energy source.
• Commercial & Industrial Applications: Suitable for businesses requiring dependable, high-capacity power.
• Emergency Backup Power: Keep your home or business running smoothly during power outages with this versatile and robust inverter.

The Ultimate Off-Grid Power Solution

The EG4 6000XP All-In-One Off-Grid Inverter combines high performance, scalability, and advanced features to provide an exceptional power solution. With its UL 1741 certification, built-in switchgear, efficient transformer-free design, and seamless monitoring capabilities, the EG4 6000XP sets the standard for reliable, off-grid energy.
